ECS linux 搭建NFS服务实现磁盘共享的具体操作
发布日期:2015-12-27 15:12:29

  目前在使用云磁盘的时候,无法实现一块云磁盘同时挂载到多台服务器上的需求,只能实现一块磁盘挂载到一台服务器使用。

  但可通过搭建NFS服务,通过内网(默认同一个帐号下同一个region服务器内网互通)实现一块磁盘共享给多台服务器使用。

  NFS的搭建环境如下所示:


  系统环境:

  服务器和客户端都是使用CentOS 6.5 64位系统。

  [root@iZ28c6rit3oZ ~]# cat /etc/issue

  CentOS release 6.5 (Final)

  Kernel \r on an \m

  [root@iZ28c6rit3oZ ~]# uname -a

  Linux iZ28c6rit3oZ 2.6.32-431.23.3.el6.x86_64 #1 SMP Thu Jul 31 17:20:51 UTC 2014 x86_64 x86_64 x86_64 GNU/Linux

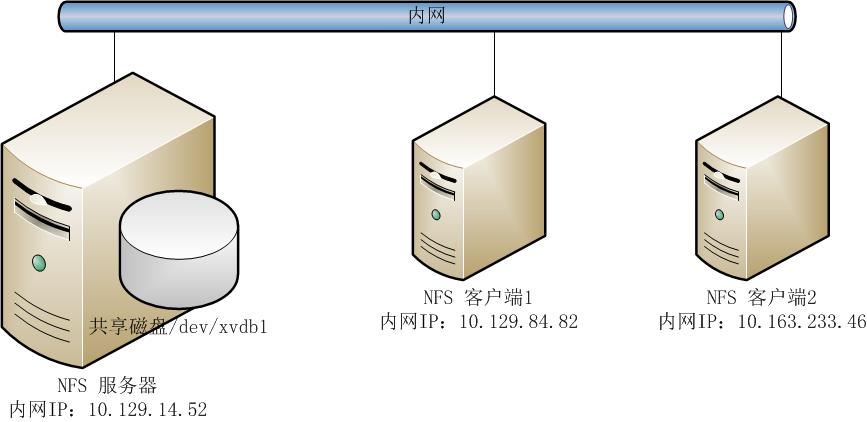

  假设,用户需把10.129.14.52这台服务器中的/dev/xvdb1磁盘共享出来给10.129.84.82和10.163.233.46这两台服务器使用。

  NFS安装:

  NFS服务器和客户端安装的软件包都是一致的,所以在此就仅以服务器端的安装举例说明。

  默认的公共镜像生成的ECS Linux服务器是没有安装NFS需要的组件,镜像市场中的镜像是否安装就需要事先做判断。

  rpm -qa | grep "rpcbind" #查看rpcbind软件包是否安装。

  yum -y install rpcbind #手动安装rpcbind软件。

  #安装完成的提示:

  Installed:

  rpcbind.x86_64 0:0.2.0-11.el6

  Dependency Installed:

  libgssglue.x86_64 0:0.1-11.el6 libtirpc.x86_64 0:0.2.1-10.el6

  Complete!

  rpm -qa | grep "rpcbind" #再次确认rpcbind是否安装成功。

  rpcbind-0.2.0-11.el6.x86_64 #可以看到rpcbind软件已经安装成功。

  rpm -qa | grep "nfs" #查看nfs软件包是否安装,默认CentOS 6.5系统是没有安装。

  yum -y install nfs-utils #手动安装nfs软件包

  #安装成功的提示:

  Installed:

  nfs-utils.x86_64 1:1.2.3-64.el6

  Dependency Installed:

  keyutils.x86_64 0:1.4-5.el6 libevent.x86_64 0:1.4.13-4.el6

  nfs-utils-lib.x86_64 0:1.1.5-11.el6 python-argparse.noarch 0:1.2.1-2.1.el6

  Dependency Updated:

  keyutils-libs.x86_64 0:1.4-5.el6

  Complete!

  rpm -qa | grep "nfs" #再次确认nfs软件包是否安装成功。

  nfs-utils-lib-1.1.5-11.el6.x86_64

  nfs-utils-1.2.3-64.el6.x86_64

  磁盘情况及挂载:

  [root@iZ28c6rit3oZ ~]# fdisk -l

  Disk /dev/xvda: 21.5 GB, 21474836480 bytes

  255 heads, 63 sectors/track, 2610 cylinders

  Units = cylinders of 16065 * 512 = 8225280 bytes

  Sector size (logical/physical): 512 bytes / 512 bytes

  I/O size (minimum/optimal): 512 bytes / 512 bytes

  Disk identifier: 0x00078f9c

  Device Boot Start End Blocks Id System

  /dev/xvda1 * 1 2611 20970496 83 Linux

  Disk /dev/xvdb: 5368 MB, 5368709120 bytes

  255 heads, 63 sectors/track, 652 cylinders

  Units = cylinders of 16065 * 512 = 8225280 bytes

  Sector size (logical/physical): 512 bytes / 512 bytes

  I/O size (minimum/optimal): 512 bytes / 512 bytes

  Disk identifier: 0x00000000

  [root@iZ28c6rit3oZ ~]# fdisk /dev/xvdb

  Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklabel

  Building a new DOS disklabel with disk identifier 0xb0112161.

  Changes will remain in memory only, until you decide to write them.

  After that, of course, the previous content won't be recoverable.

  Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)

  WARNING: DOS-compatible mode is deprecated. It's strongly recommended to

  switch off the mode (command 'c') and change display units to

  sectors (command 'u').

  Command (m for help): p

  Disk /dev/xvdb: 5368 MB, 5368709120 bytes

  255 heads, 63 sectors/track, 652 cylinders

  Units = cylinders of 16065 * 512 = 8225280 bytes

  Sector size (logical/physical): 512 bytes / 512 bytes

  I/O size (minimum/optimal): 512 bytes / 512 bytes

  Disk identifier: 0xb0112161

  Device Boot Start End Blocks Id System

  Command (m for help): n

  Command action

  e extended

  p primary partition (1-4)

  p

  Partition number (1-4): 1

  First cylinder (1-652, default 1):

  Using default value 1

  Last cylinder, +cylinders or +size{K,M,G} (1-652, default 652):

  Using default value 652

  Command (m for help): p

  Disk /dev/xvdb: 5368 MB, 5368709120 bytes

  255 heads, 63 sectors/track, 652 cylinders

  Units = cylinders of 16065 * 512 = 8225280 bytes

  Sector size (logical/physical): 512 bytes / 512 bytes

  I/O size (minimum/optimal): 512 bytes / 512 bytes

  Disk identifier: 0xb0112161

  Device Boot Start End Blocks Id System

  /dev/xvdb1 1 652 5237158+ 83 Linux

  Command (m for help): wq

  The partition table has been altered!

  Calling ioctl() to re-read partition table.

  Syncing disks.

  [root@iZ28c6rit3oZ ~]# mkfs.ext4 /dev/xvdb1

  mke2fs 1.41.12 (17-May-2010)

  Filesystem label=

  OS type: Linux

  Block size=4096 (log=2)

  Fragment size=4096 (log=2)

  Stride=0 blocks, Stripe width=0 blocks

  327680 inodes, 1309289 blocks

  65464 blocks (5.00%) reserved for the super user

  First data block=0

  Maximum filesystem blocks=1342177280

  40 block groups

  32768 blocks per group, 32768 fragments per group

  8192 inodes per group

  Superblock backups stored on blocks:

  32768, 98304, 163840, 229376, 294912, 819200, 884736

  Writing inode tables: done

  Creating journal (32768 blocks): done

  Writing superblocks and filesystem accounting information: done

  This filesystem will be automatically checked every 38 mounts or

  180 days, whichever comes first. Use tune2fs -c or -i to override.

  [root@iZ28c6rit3oZ ~]# cp -a /etc/fstab /etc/fstab.bak

  [root@iZ28c6rit3oZ ~]# vim /etc/fstab

  #

  # /etc/fstab

  # Created by anaconda on Thu Aug 14 21:16:42 2014

  #

  # Accessible filesystems, by reference, are maintained under '/dev/disk'

  # See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info

  #

  UUID=94e4e384-0ace-437f-bc96-057dd64f42ee / ext4 defaults,barrier=0 1 1

  tmpfs /dev/shm tmpfs defaults 0 0

  devpts /dev/pts devpts gid=5,mode=620 0 0

  sysfs /sys sysfs defaults 0 0

  proc /proc proc defaults 0 0

  /dev/xvdb1 /mnt ext4 defaults 0 0

  [root@iZ28c6rit3oZ ~]# mount -a

  [root@iZ28c6rit3oZ ~]# df -h

  Filesystem Size Used Avail Use% Mounted on

  /dev/xvda1 20G 1.5G 18G 8% /

  tmpfs 938M 0 938M 0% /dev/shm

  /dev/xvdb1 5.0G 138M 4.6G 3% /mnt

  可看到磁盘已分区成功,并且挂载到/mnt目录中。

  若对于磁盘分区操作有疑问,可参见帮助中心磁盘及分区。

  NFS服务器创建共享目录:

  [root@iZ28c6rit3oZ ~]# mkdir /mnt/share #创建共享目录为/mnt/share

  [root@iZ28c6rit3oZ ~]# vim /etc/exports #修改/etc/exports文件,输出共享目录

  /mnt/share *(rw,sync,no_root_squash)

  说明:

  /etc/exports文件内容格式:

  [客户端1 选项(访问权限,用户映射,其他)] [客户端2 选项(访问权限,用户映射,其他)]

  a. 输出目录:

  输出目录是指NFS系统中需要共享给客户机使用的目录;

  b. 客户端:

  客户端是指网络中可以访问这个NFS输出目录的计算机

  客户端常用的指定方式

  指定ip地址的主机:192.168.0.200

  指定子网中的所有主机:192.168.0.0/24 192.168.0.0/255.255.255.0

  指定域名的主机:david.bsmart.cn

  指定域中的所有主机:*.bsmart.cn

  所有主机:*

  c. 选项:

  选项用来设置输出目录的访问权限、用户映射等。

  NFS主要有3类选项:

  访问权限选项

  设置输出目录只读:ro

  设置输出目录读写:rw

  用户映射选项

  anongid=xxx:将远程访问的所有用户组都映射为匿名用户组账户,并指定该匿名用户组账户为本地用户组账户(GID=xxx);

  all_squash:将远程访问的所有普通用户及所属组都映射为匿名用户或用户组(nfsnobody);

  anonuid=xxx:将远程访问的所有用户都映射为匿名用户,并指定该用户为本地用户(UID=xxx);

  no_root_squash:与rootsquash取反;

  no_all_squash:与all_squash取反(默认设置);

  root_squash:将root用户及所属组都映射为匿名用户或用户组(默认设置);

  其它选项

  async:将数据先保存在内存缓冲区中,必要时才写入磁盘;

  insecure:允许客户端从大于1024的tcp/ip端口连接服务器;

  no_subtree:即使输出目录是一个子目录,nfs服务器也不检查其父目录的权限,这样可以提高效率;

  no_wdelay:若有写操作则立即执行,应与sync配合使用;

  secure:限制客户端只能从小于1024的tcp/ip端口连接nfs服务器(默认设置);

  subtree:若输出目录是一个子目录,则nfs服务器将检查其父目录的权限(默认设置);

  sync:将数据同步写入内存缓冲区与磁盘中,效率低,但可以保证数据的一致性;

  wdelay:检查是否有相关的写操作,如果有则将这些写操作一起执行,这样可以提高效率(默认设置);

  每个客户端后面必须跟一个小括号,里面定义了此客户端的访问特性,比如访问权限等。

  例如:

  172.16.0.0/16(ro,async) 192.168.0.0/24(rw,sync)

  [root@iZ28c6rit3oZ ~]# /etc/init.d/rpcbind start #启动rpcbind服务

  Starting rpcbind: [ OK ]

  [root@iZ28c6rit3oZ ~]# /etc/init.d/nfs start #启动nfs服务

  Starting NFS services: [ OK ]

  Starting NFS quotas: [ OK ]

  Starting NFS mountd: rpc.mountd: svc_tli_create: could not open connection for udp6

  rpc.mountd: svc_tli_create: could not open connection for tcp6

  rpc.mountd: svc_tli_create: could not open connection for udp6

  rpc.mountd: svc_tli_create: could not open connection for tcp6

  rpc.mountd: svc_tli_create: could not open connection for udp6

  rpc.mountd: svc_tli_create: could not open connection for tcp6

  [ OK ]

  Starting NFS daemon: rpc.nfsd: address family inet6 not supported by protocol TCP

  [ OK ]

  Starting RPC idmapd: [ OK ]

  [root@iZ28c6rit3oZ ~]# chkconfig rpcbind on #配置rpcbind开机自动启动

  [root@iZ28c6rit3oZ ~]# chkconfig nfs on #配置nfs开机自动启动

  NFS客户端挂载服务器共享的目录:

  客户端1挂载服务器端的NFS资源:

  因为操作方法和服务器端一致,先就不做说明,如果有疑问,可以参见NFS服务器的安装说明。

  [root@iZ28i56ixcuZ ~]# yum -y install rpcbind

  [root@iZ28i56ixcuZ ~]# rpm -qa | grep rpcbind

  rpcbind-0.2.0-11.el6.x86_64

  [root@iZ28i56ixcuZ ~]# rpm -qa | grep nfs

  [root@iZ28i56ixcuZ ~]# yum -y install nfs-utils

  [root@iZ28q9kp4g6Z ~]# /etc/init.d/rpcbind start

  Starting rpcbind: [ OK ]

  [root@iZ28q9kp4g6Z ~]# /etc/init.d/nfs

  nfs nfslock

  [root@iZ28q9kp4g6Z ~]# /etc/init.d/nfs start

  Starting NFS services: [ OK ]

  Starting NFS quotas: [ OK ]

  Starting NFS mountd: rpc.mountd: svc_tli_create: could not open connection for udp6

  rpc.mountd: svc_tli_create: could not open connection for tcp6

  rpc.mountd: svc_tli_create: could not open connection for udp6

  rpc.mountd: svc_tli_create: could not open connection for tcp6

  rpc.mountd: svc_tli_create: could not open connection for udp6

  rpc.mountd: svc_tli_create: could not open connection for tcp6

  [ OK ]

  Starting NFS daemon: rpc.nfsd: address family inet6 not supported by protocol TCP

  [ OK ]

  Starting RPC idmapd: [ OK ]

  [root@iZ28q9kp4g6Z ~]# chkconfig rpcbind on

  [root@iZ28q9kp4g6Z ~]# chkconfig nfs on

  [root@iZ28i56ixcuZ ~]# showmount -e 10.129.14.52 #查看NFS服务器共享出来的目录

  Export list for 10.129.14.52:

  /mnt/share *

  [root@iZ28i56ixcuZ ~]# mount -t nfs 10.129.14.52:/mnt/share /mnt #挂载NFS服务器上共享出来的目录

  [root@iZ28i56ixcuZ ~]# df -h

  Filesystem Size Used Avail Use% Mounted on

  /dev/xvda1 20G 1.5G 18G 8% /

  tmpfs 938M 0 938M 0% /dev/shm

  10.129.14.52:/mnt/share

  5.0G 138M 4.6G 3% /mnt

  可以看到服务器共享出来的目录已经挂载成功。

  客户端2挂载服务器端的NFS资源:

  操作方法和客户端1是一致的,所以如果有疑问请参看客户端1的说明。

  [root@iZ28q9kp4g6Z ~]# cat /etc/issue

  CentOS release 6.5 (Final)

  Kernel \r on an \m

  [root@iZ28q9kp4g6Z ~]# uname -a

  Linux iZ28q9kp4g6Z 2.6.32-431.23.3.el6.x86_64 #1 SMP Thu Jul 31 17:20:51 UTC 2014 x86_64 x86_64 x86_64 GNU/Linux

  [root@iZ28q9kp4g6Z ~]# ifconfig | grep inet

  inet addr:10.163.233.46 Bcast:10.163.239.255 Mask:255.255.240.0

  inet addr:121.42.27.129 Bcast:121.42.27.255 Mask:255.255.252.0

  inet addr:127.0.0.1 Mask:255.0.0.0

  [root@iZ28q9kp4g6Z ~]# showmount -e 10.129.14.52

  Export list for 10.129.14.52:

  /mnt/share *

  [root@iZ28q9kp4g6Z ~]# df -h

  Filesystem Size Used Avail Use% Mounted on

  /dev/xvda1 20G 1.5G 18G 8% /

  tmpfs 938M 0 938M 0% /dev/shm

  [root@iZ28q9kp4g6Z ~]# mount -t nfs 10.129.14.52:/mnt/share /mnt

  [root@iZ28q9kp4g6Z ~]# df -h

  Filesystem Size Used Avail Use% Mounted on

  /dev/xvda1 20G 1.5G 18G 8% /

  tmpfs 938M 0 938M 0% /dev/shm

  10.129.14.52:/mnt/share

  5.0G 138M 4.6G 3% /mnt

  可看到已成功挂载到NFS 服务器共享出来的目录。

  在NFS服务器中共享目录中创建文件,测试客户端挂载的目录中能否访问到。

  NFS服务器:

  [root@iZ28c6rit3oZ ~]# df -h

  Filesystem Size Used Avail Use% Mounted on

  /dev/xvda1 20G 1.5G 18G 8% /

  tmpfs 938M 0 938M 0% /dev/shm

  /dev/xvdb1 5.0G 138M 4.6G 3% /mnt

  [root@iZ28c6rit3oZ ~]# cd /mnt

  [root@iZ28c6rit3oZ mnt]# echo "This is a test file" >test.txt

  [root@iZ28c6rit3oZ mnt]# cat test.txt

  This is a test file

  [root@iZ28c6rit3oZ mnt]# mv test.txt share/

  [root@iZ28c6rit3oZ mnt]# cd share/

  [root@iZ28c6rit3oZ share]# ls #可以看到共享目录中已经创建了一个文件,名为test.txt

  test.txt

  NFS 客户端:

  NFS客户端1:

  [root@iZ28i56ixcuZ ~]# ifconfig | grep inet

  inet addr:10.129.84.82 Bcast:10.129.95.255 Mask:255.255.240.0

  inet addr:42.96.202.186 Bcast:42.96.203.255 Mask:255.255.252.0

  inet addr:127.0.0.1 Mask:255.0.0.0

  [root@iZ28i56ixcuZ ~]# cd /mnt

  [root@iZ28i56ixcuZ mnt]# ls

  test.txt

  [root@iZ28i56ixcuZ mnt]# cat test.txt #可以看到在NFS客户端中可以看到NFS服务器共享出来的文件

  This is a test file

  [root@iZ28i56ixcuZ mnt]# vim test.txt #可以看到NFS客户端可以修改NFS 服务器共享出来的目录,这个因为在NFS服务器端是赋予了客户端w(写)权限

  This is a test file

  Client1 add test file.

  NFS客户端2上面访问:

  root@iZ28i56ixcuZ mnt]# cat test.txt

  This is a test file

  Client1 add test file.

  [root@iZ28q9kp4g6Z ~]# cd /mnt/

  [root@iZ28q9kp4g6Z mnt]# ls

  test.txt

  [root@iZ28q9kp4g6Z mnt]# cat test.txt

  This is a test file

  Client1 add test file.

  [root@iZ28q9kp4g6Z mnt]# vim test.txt

  This is a test file

  Client1 add test file.

  Client2 add test file too.

  将NFS服务器端共享出来的目录实现开机自动挂载:

  NFS客户端1:

  [root@iZ28i56ixcuZ mnt]# ifconfig | grep inet

  inet addr:10.129.84.82 Bcast:10.129.95.255 Mask:255.255.240.0

  inet addr:42.96.202.186 Bcast:42.96.203.255 Mask:255.255.252.0

  inet addr:127.0.0.1 Mask:255.0.0.0

  [root@iZ28i56ixcuZ mnt]# cp -a /etc/fstab /etc/fstab.bak

  [root@iZ28i56ixcuZ mnt]# vim /etc/fstab #设置NFS服务器端共享的目录开机自动挂载

  #

  # /etc/fstab

  # Created by anaconda on Thu Aug 14 21:16:42 2014

  #

  # Accessible filesystems, by reference, are maintained under '/dev/disk'

  # See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info

  #

  UUID=94e4e384-0ace-437f-bc96-057dd64f42ee / ext4 defaults,barrier=0 1 1

  tmpfs /dev/shm tmpfs defaults 0 0

  devpts /dev/pts devpts gid=5,mode=620 0 0

  sysfs /sys sysfs defaults 0 0

  proc /proc proc defaults 0 0

  10.129.14.52:/mnt/share /mnt nfs defaults 0 0

  [root@iZ28i56ixcuZ mnt]# mount -a

  [root@iZ28i56ixcuZ mnt]# df -h

  Filesystem Size Used Avail Use% Mounted on

  /dev/xvda1 20G 1.5G 18G 8% /

  tmpfs 938M 0 938M 0% /dev/shm

  10.129.14.52:/mnt/share

  5.0G 138M 4.6G 3% /mnt

  [root@iZ28i56ixcuZ ~]# cp -a /etc/rc.d/rc.local /etc/rc.d/rc.local.bak

  [root@iZ28i56ixcuZ ~]# vim /etc/rc.d/rc.local

  #!/bin/sh

  #

  # This script will be executed *after* all the other init scripts.

  # You can put your own initialization stuff in here if you don't

  # want to do the full Sys V style init stuff.

  touch /var/lock/subsys/local

  mount –a

  重启测试,看看能实现自动挂载:

  init 6

  [root@iZ28i56ixcuZ ~]# df -h

  Filesystem Size Used Avail Use% Mounted on

  /dev/xvda1 20G 1.5G 18G 8% /

  tmpfs 938M 0 938M 0% /dev/shm

  10.129.14.52:/mnt/share

  5.0G 138M 4.6G 3% /mnt

  可看到实现了开机自动挂载。
